Structural Retaining Wall Geelong

Failed, leaning or unsafe retaining wall? Get it rebuilt properly.

Titan Group Vic specialises in replacing failed retaining walls across Geelong — with correct drainage, engineered footings and a build process designed to avoid the shortcuts that caused the problem in the first place.

Geelong specialists Fixed written quote 48-hr turnaround Licensed & insured Engineering handled where required

We see this across Geelong every week.

A homeowner gets three quotes. They go with the cheapest. The wall looks fine on day one. But within 3–5 years, the soil shifts, water builds up behind the structure, and the wall starts leaning into the neighbour's yard. What looked like a simple landscape feature suddenly requires full demolition and a structural rebuild — at double the original cost.

Why retaining walls fail early

The actual structural causes — not vague "poor workmanship".

Drainage failure

Water is heavy. Saturated soil behind an undraining wall generates thousands of kilos of hydrostatic pressure. Without ag-pipe and drainage aggregate, the wall acts as a dam — and eventually fails outward.

Shallow footings

In Geelong's reactive clay soils, posts set in topsoil or shallow concrete have no holding strength. Seasonal ground movement works them loose within a few years — particularly on sloped sites.

Wrong backfill

Backfilling with excavated clay or general fill holds water and expands with rain. Proper structural installs require clean 20mm drainage aggregate — not the cheapest available material on site.

Rotting timber

Untreated or low-grade timber in contact with wet soil deteriorates within 5–8 years. Many cheap installs use substandard posts that lose structural integrity long before the wall should need replacement.

No soil pressure assessment

A wall on a steep slope with heavy clay behind it needs completely different engineering to a flat block with sandy loam. Without assessing the actual load, the wall is undersized from the start.

Shortcut installation

Low-quote contractors cut time on excavation depth, post spacing and drainage runs. These shortcuts are invisible on completion day but guarantee failure within the wall's intended lifespan.

Why the cheapest quote becomes the most expensive wall

The difference between a shortcut install and a structural one is invisible on completion day — and significant within a few years.

Shortcut install
  • Minimal excavation to reduce labour time
  • No drainage planning — soil absorbs water behind wall
  • Shallow posts set in topsoil or weak concrete
  • Clay backfill or general site fill
  • No soil load or slope pressure assessment
  • Low-grade or untreated timber
  • Verbal or rough quote — price can shift at invoice
  • Fast finish — looks fine on day one
Titan structural approach
  • Full excavation to correct design depth
  • Ag-pipe, geofabric and clean drainage aggregate specified
  • Deep steel posts set in structural concrete
  • Clean 20mm drainage aggregate backfill, properly compacted
  • Site assessed for slope, soil type and structural load
  • Correct wall system for site conditions
  • Fixed written quote before any work starts
  • Built to structural requirements — engineered where required

The hidden cause most builders miss

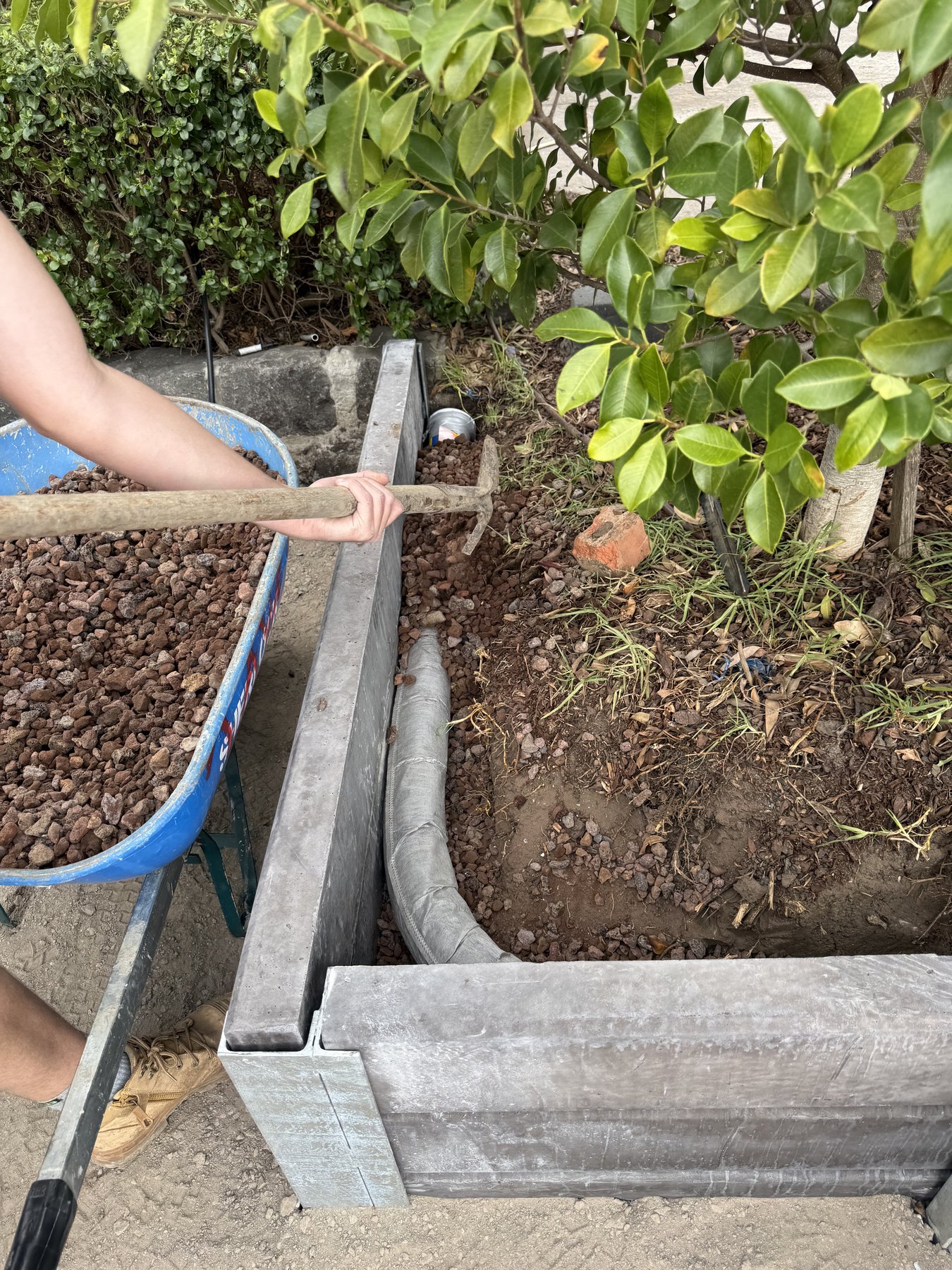

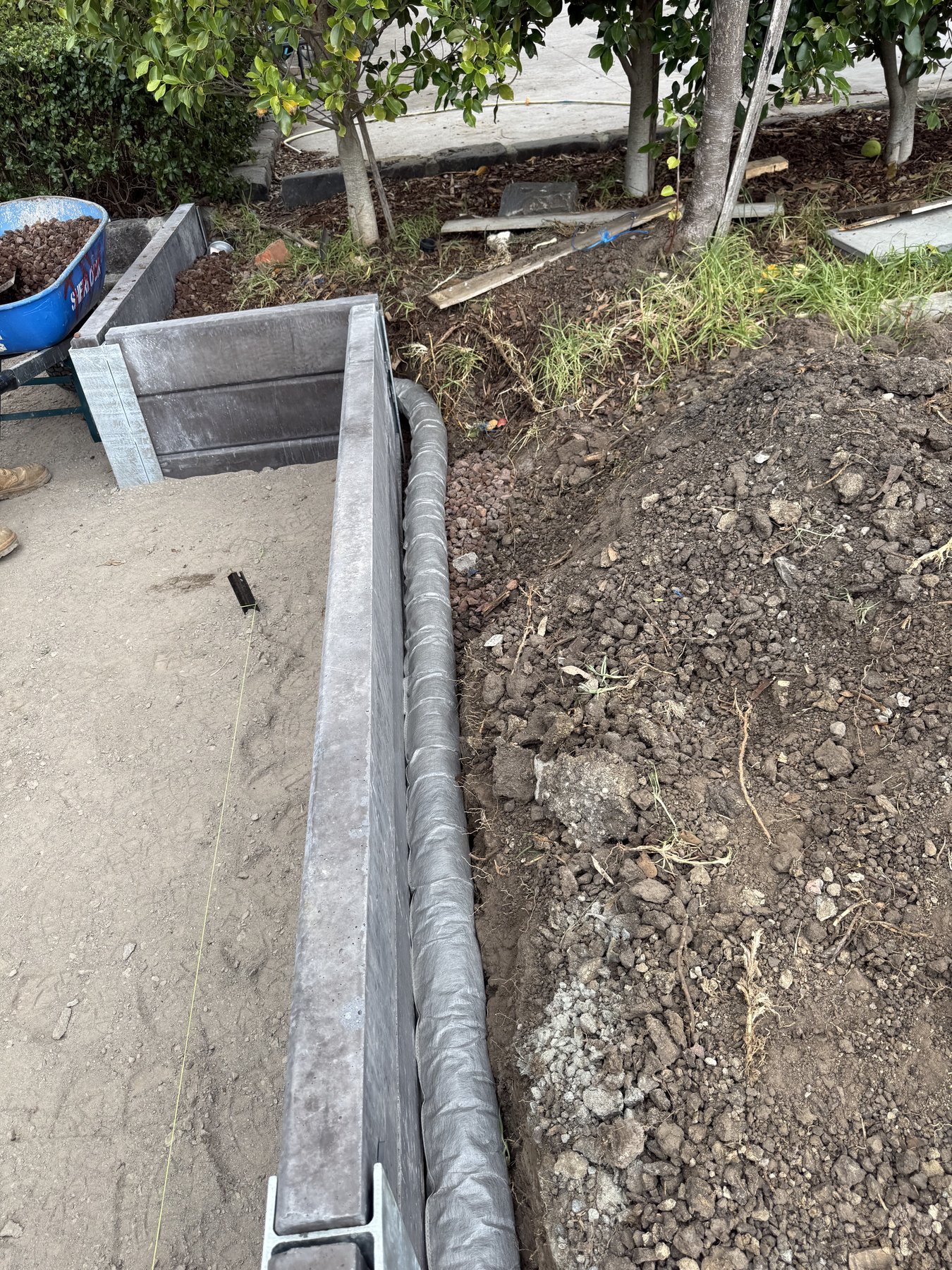

The most critical part of your retaining wall is the part you will never see: the drainage system installed behind it.

Without heavy-duty agricultural pipe wrapped in geofabric and backfilled with clean drainage aggregate, water becomes trapped in the soil mass behind the wall.

This hydrostatic pressure builds with every rain event. No matter how thick the concrete sleepers or how solid the posts looked on installation day — a wall with no drainage path will eventually fail. It is the single most common reason we are called in to replace walls that are less than 10 years old.

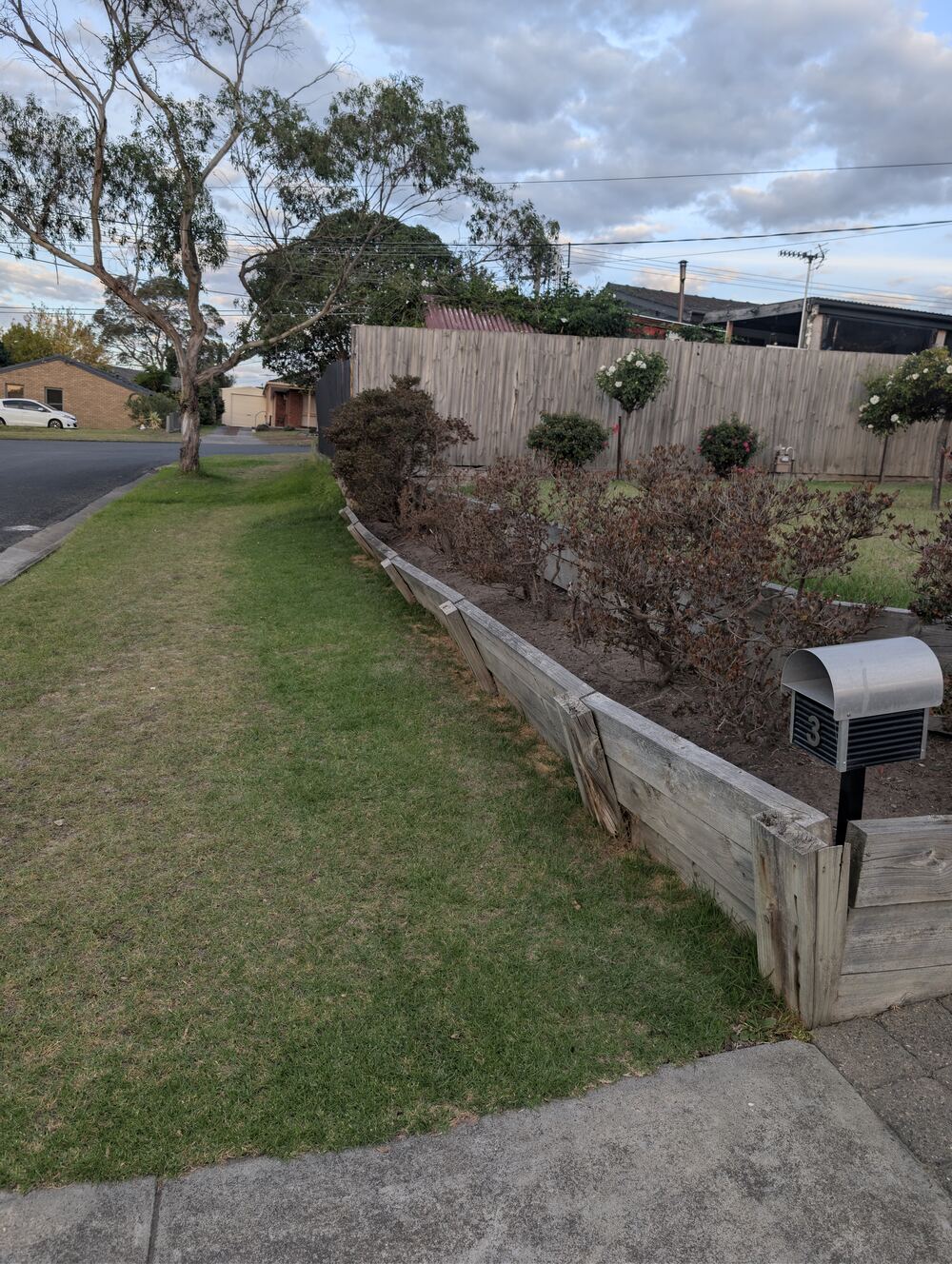

Failed retaining wall leaning

Our standard structural build process

Every Titan wall follows the same staged process. No shortcuts. No variations.

01

Site Assessment

We evaluate slope, soil conditions, drainage path and access to determine the correct structural approach for your specific property.

02

Engineering & Permits

Where walls exceed standard heights or carry loads, we organise engineering certification and any required council permits before work starts.

03

Excavation & Footings

We excavate to design depth, bore post holes and set heavy-duty steel posts in structural concrete. No shortcuts on footing depth or spacing.

04

Drainage & Finish

Ag-pipe, geofabric and clean aggregate are installed before any backfill. Wall panels set. Site cleaned. Drainage confirmed before we leave.

What happens after you contact us

No sales pressure. A clear process from first contact to written quote.

1

Submit your details

Fill in the form below. Describe the wall and include photos from your phone if you have them — it speeds up the assessment.

2

Titan reviews the problem

Ben reviews your submission and assesses whether this is a structural repair, a full replacement or a new install — before calling you.

3

We call to clarify scope

A quick call to confirm your suburb, wall size, access and urgency. Most calls take under 10 minutes.

4

On-site assessment booked

If the project suits our scope, we book the site visit — normally within 48 hours for urgent or failing walls.

5

You receive a fixed written quote

A clear written quote covering all work, materials and timeframe. No open-ended estimates. No surprises on invoice day.

6

Approved works are scheduled

If you accept, works are scheduled — we aim to start within 2–3 weeks. Urgent structural failures prioritised where possible.

Don't pay for the same wall twice.

Most walls we replace were originally built cheaply — and the previous builder compromised on drainage and footings to win on price.

A failed retaining wall typically costs more to demolish and rebuild than the original install. Add soil removal, compaction and any new engineering requirements and the total is usually 2–3× what a proper install would have cost the first time.

Retaining wall replacement costs vary based on height, length, access, soil conditions, drainage requirements and whether engineering is needed. Most serious wall replacements are not cheap patch jobs — the goal is to solve the cause properly, not rebuild the same failure in five years.

What Geelong homeowners say

Real reviews from real clients across Geelong and the Bellarine.

★★★★★

"We recently had a retaining wall built in our back yard, a new garden bed and some turf laid. The team was incredibly responsive, worked hard and consistently checked to ensure we were happy with it all. We are very happy with the work and would recommend to anyone!"

S
Shereebee
Local Guide
★★★★★

"Right from the initial quote, Ben and Liam were professional and very easy to deal with. On the job, the team were punctual and reliable. Liam's attention to detail was impressive. There were occasions where corners could have been cut without us knowing, but Liam was meticulous and honest. I recommend the Titan Group to anyone."

R
Romeo Salla
1 Acre Property Owner
★★★★★

"Titan Group are mindful, diligent, intelligent workers. All jobs were completed beyond my expectations. Very professional. I highly recommend their work."

R
Rose Mather
Queenscliff, Vic

Who we're right for

  • Homeowners with a failing, leaning or cracking retaining wall.
  • Anyone who wants the actual cause fixed — not patched for another few years.
  • Those who value a clear written quote and know what they're getting before work starts.
  • Projects where doing it right the first time matters more than the cheapest price.

Who we're not right for

  • Those looking for the cheapest possible cash-in-hand job.
  • Projects where corners need to be cut to meet an unrealistic budget.
  • Un-engineered installs without proper drainage planning.

Request a site assessment

"Most of our clients come to us after getting 2–3 cheaper quotes."

Fill in the details below and we will call within 2 business hours to discuss your project and book an on-site visit.

Costs vary based on wall height, length, access, soil conditions and whether engineering is required. We will give you a clear fixed price after the site assessment — no open-ended estimates, no surprises on invoice day.

We'll call within 2 business hours. Mon–Fri 07:00–17:00, Sat 08:00–14:00.
